Garden hose pressure booster: Pros and Cons

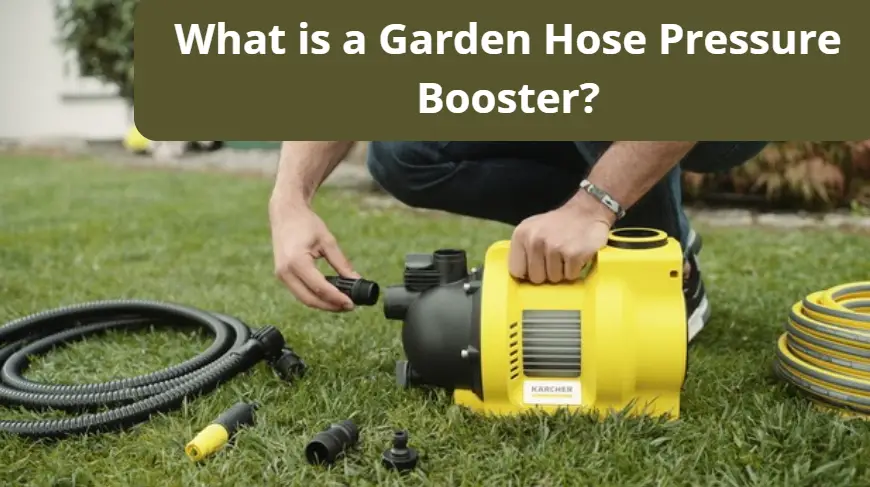

What is a Garden Hose Pressure Booster?

A garden hose pressure booster (or booster pump) is a device placed in line with your water supply (before or alongside the hose) to increase the water pressure / flow available at the hose outlet. It helps compensate for weak mains pressure, long hose runs, elevation gain, or friction losses in piping.

It’s not the same as a high-pressure washer; booster pumps are generally gentler, continuous-use devices suited for irrigation, garden spraying, etc.

How It Works

• Water from your source (tap, tank, cistern, etc.) enters the pump at a lower pressure.
• Inside the booster, an impeller (or series of impellers) accelerates the water (adds velocity).
• That velocity is converted into higher pressure as the water is forced through narrowing passages or diffusers.

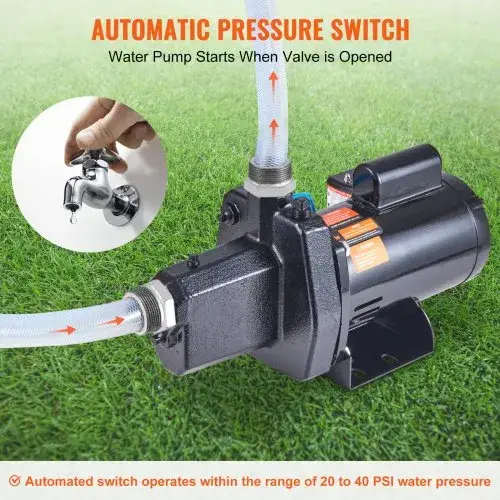

• Many booster pumps include pressure sensors or switches (or an expansion/pressure tank) so they turn on / off automatically when demand changes. (E.g. when you open the hose tap, pump kicks in; when you close it, pump stops)
• With a booster + pressure tank setup, small draw-offs can be handled by the stored pressure in the tank without turning the pump on immediately.

In summary: booster pumps “help water flow uphill or through long runs by adding extra push / pressure to overcome losses.”

Why/When You Need One

You might consider a garden hose booster if:

• Your water supply pressure is low (e.g. < 40 psi or equivalent).
• The hose run is very long (lots of friction losses).
• You have significant elevation gain (watering up a slope).
• Multiple taps or sprinklers share the same supply and pressure drops when several run.
• Your existing hose or plumbing restricts flow (narrow pipes).
• You’ve already eliminated simpler causes (leaks, blockages, kinks) and still have weak flow.

As one guide suggests: if your measured pressure is under ~ 40 psi, a booster pump is often the easiest way to bring it up.

However, a booster is not a cure-all. If your pipes are too small, extremely clogged, or your source itself is weak (e.g. low municipal supply pressure), a booster may struggle or just move more water at little extra pressure.

Pros & Cons of Garden Hose Pressure Booster

One user on a forum noted that good pumps are “really expensive for quality” and cheap booster pumps often disappoint in real-world performance.

Also, as another discussion put it, friction loss in the hose is a key limiting factor (so even with a booster, if your hose is too narrow/too long, pressure loss is inevitable) — e.g. “with ¾″ hose you’ll lose ~33 psi over 300 ft at 10 GPM … you really should use 1″ or larger for long runs; booster should be close to the source, because pumps push better than they pull.”

In short: choose carefully, install well, and don’t expect miracles.

What to Look For / How to Select

When choosing a garden hose booster, here are the key specs and features to check:

Spec / Feature	Importance / Guidance
Flow rate (e.g. gallons per minute, liters per minute)	The pump should be able to supply more flow than your demand (hose, sprinklers).
Head / pressure boost (psi, meters of head)	How much extra pressure (or elevation) it can overcome.
Power / motor size (kW, HP)	Larger motors can deliver more pressure/flow but cost more energy.
Automatic controls / pressure switch / variable speed	To save energy and reduce pump cycling.
Pressure tank / accumulator (if built-in)	Helps reduce cycling, smooths pressure.
Material / durability (brass fittings, corrosion resistance)	Outdoors exposure demands good materials.
Noise level	If installed near living spaces, quieter is better.
Ease of installation / compatibility	Matching your hose size, threads, power requirements.
Maintenance access / serviceability	Replaceable parts, easy to clean filters etc.

Also consider:

• Min / max intake pressure (some pumps must have a minimum inlet pressure to avoid cavitation).
• Suction lift capability (how far it can pull water from a source below it).
• Electrical requirements (voltage, phase, wiring).
• Safety and check valves (to avoid reverse flow).
• Filtration (to prevent debris damaging the pump).

Installation & Best Practices

To get a reliable and lasting setup, follow these best practices:

1. Locate near the source
   The booster should be as close as possible to the water source. Putting it mid-hose often leads to negative pressure / cavitation problems. As one forum user said: “boosters push better than they pull.”
2. Use proper fittings & valves
   Include a check valve, a shutoff, possibly a bypass line, and filters/screens at the intake to protect the pump.
3. Support & vibration isolation
   Mount on a solid base, use rubber dampers to reduce noise and vibration.
4. Electrical considerations
   Ensure proper wiring, ground, proper voltage, and protection (fuses or breakers).
5. Priming / suction
   Some pumps need priming (filling with water); make sure inlet piping is airtight and water path is free.
6. Pipe sizing
   Use suitably sized piping / hose (larger diameter where possible) to minimize friction losses downstream of pump.
7. Pressure tank / accumulator
   If included or external, this helps reduce cycling, maintain pressure when flow is intermittent.
8. Maintenance access
   Make sure filters, seals, impellers are accessible for cleaning/servicing.
9. Winter / freeze protection
   If in cold climate, protect the pump and pipes from freezing (drain or insulate, locate in non-freezing place).
10. Monitoring & safety
    Use pressure gauges to monitor performance. Include relief valve or safety valve to avoid overpressure.

Example Models & Reviews

Here are some highlights:

• Насос + Garden‑JLUX 2,4‑30/1,1 — A higher capacity model (2.4 kW, 30 m head), suitable if you need to push water up a slope or long distance.
• Expert Garden EKJ‑601I — Mid-sized, good for general garden / irrigation uses.

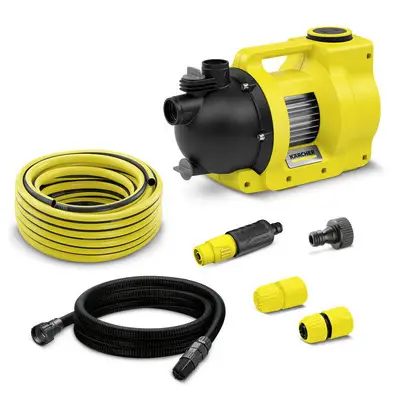

• KAERCHER BP 6.000 Set — A brand name pump (Kärcher) with supporting ecosystem, likely to have service / parts in local markets.
• Насос + Garden‑JP 1,2‑25/0,6 — More compact, lower power model (0.6 kW, 25 m head) — suitable for lighter or shorter runs.
• Hydro World boosting pump — Marketed specifically for pressure boosting in irrigation / garden scenarios.
• NPO Booster mini 20 м — A mini booster, useful for short-distance, small-scale setups.

How to compare them:

• Match the head (in meters or psi) and flow (L/min or m³/h) specs to your requirement (hose length, elevation, number of sprinklers).
• Check the motor power and compatibility with your electrical supply.
• Look for durability (materials, corrosion resistance).
• Check if a pressure tank / automatic control is included or needs to be added.

In reviews (e.g. for general booster pumps), people often cite that cast iron or brass models run quieter and longer, but cost more. For example, the ECO FLO ½ HP booster pump was reviewed positively for quiet operation in one retailer listing.

Also, general guide reviews suggest that in many day-to-day garden use cases, putting a booster pump is one of the final fixes — after ensuring hose quality, diameter, and eliminating leaks/blockages.

Performance Expectations & Realities

• You won’t get unlimited pressure; a booster raises what the pump is rated for, but downstream hose length, bends, fittings, nozzles all impose losses.
• The pump’s boost is typically in the tens of psi or equivalent meters (maybe 10–50 psi, or 10–30+ m head) depending on model.
• Pumps with variable speed / pressure control tend to give smoother, more efficient performance and respond better to varying demand.
• Over time, impellers may wear, seals may leak, efficiency degrades — maintenance is needed.
• If the supply (tap) is extremely low or the source volume is limited, the pump can only do so much (it can’t generate water out of nothing).
